Product description
The product boasts excellent thermal insulation and fire resistance properties, along with flexibility, water and moisture resistance, and is non-toxic and smoke-free. Under the same technical requirements and construction conditions, this series of products is thinner and lighter than traditional insulation materials, effectively saving space and reducing overall load, making it a multi-functional thermal insulation and fireproof material.
| No. | Parameter | Specification |

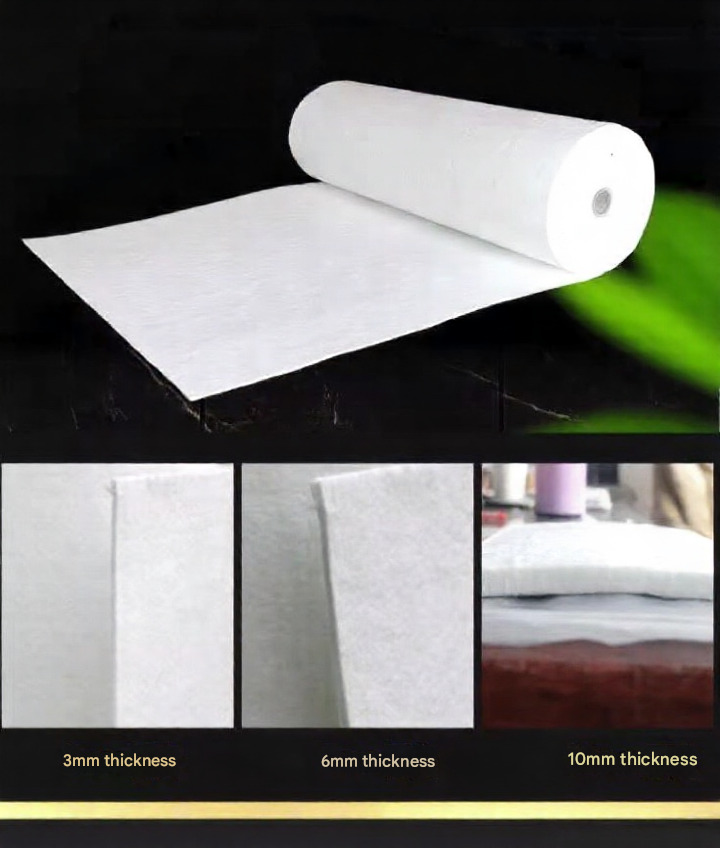

| 1 | Thickness | 6mm, 10mm, etc. |
| 2 | Operating Temperature | -196℃～1100℃ |
| 3 | Substrate Specifications | 1.5m wide, 4.0m long (roll) |
| 4 | Basic Components | Amorphous silicon dioxide, special glass fiber, etc. |
| 5 | Bulk Density | 90kg/m³～250kg/m³ (Different densities can be designed according to different requirements) |
| 6 | Moisture Absorption Rate | ≤1.0% |
| 7 | Water Repellency | ≥98.5% |
| 8 | Thermal Conductivity | 0.015W/m.K (23℃±2℃) |
Applications
- Used in the heating, chemical, petrochemical, and extraction industries – where the medium temperature does not exceed 675 °C – as an insulator for pipelines, tanks, turbines, and valves in industrial installations; also used in products dedicated to industry
- Used in construction, particularly in historic buildings where thermal modernization can only be carried out from the inside, as well as in modern architectural projects
- Highest thermal performance – 2 to 5 times more effective than competing thermal insulation materials
- Reduced thickness and profile – consistent thermal resistance across the entire surface at minimal thickness
- Reduced labor time during installation – easy to cut and fit into curves and hard-to-reach areas
- Fire-resistant – due to its fire protection properties, it is ideal for use in high-rise buildings (exterior) and industrial installations
- Hydrophobic and breathable – repels liquid water while allowing water vapor to pass through, preventing moisture accumulation and under-insulation corrosion
- Environmentally safe – waste can be landfilled, does not contain fibers hazardous to the respiratory system
Advantages
- QUALITY
Thanks to advanced technology, The product offers extremely low thermal conductivity: λ = 0.018 W/mK. - UNIQUENESS
The product is distinguished by its exceptional flexibility, compression resistance, and ease of cutting and installation. - FIRE RESISTANCE
Its fire protection parameters make it ideal for use in exterior high-rise applications and industrial installations. - HYDROPHOBICITY
Evergel repels water but allows water vapor to pass through, preventing internal accumulation and effectively protecting against corrosion under insulation. - Long Service Life Inorganic material, does not age or mold, and maintains its performance unchanged for 20 years.
- SAFETY
Our experience and professionalism have earned us the status of a trusted company, already appreciated by many clients. The trust placed in us and the strong, long-lasting relationships we build are priceless. We are pleased to present our most recent projects.
